If you ride year-round in Seattle, Portland, Vancouver BC, or anywhere west of the Cascades, you already know the rain isn't really the problem — it's the relentless 8-month drizzle that wicks into every seam, connector, and battery vent. Learning how to waterproof ebike battery for Pacific Northwest winters comes down to four things: sealing the case-to-frame interface, protecting the discharge port and charging port with dielectric grease, adding a neoprene or silicone cover rated to IPX5+, and storing the pack indoors above 50°F between rides. Do those four things and your 500–750Wh pack will survive every atmospheric river the PNW throws at it without capacity loss, BMS faults, or the dreaded corroded XT60.
This guide walks through the exact products, sealants, and habits that PNW commuters use to get 5+ winters out of a single battery. We'll cover frame-mounted packs, rear-rack packs, and dual-battery setups, plus what to do if you've already had water intrusion.
The best how to waterproof ebike battery for pacific northwest winters for your situation depends on how you plan to use it and where.
Why PNW Winters Are Uniquely Brutal on Ebike Batteries
A battery rated IPX4 (splash-resistant) will survive a sunny California winter just fine. The Pacific Northwest is different. From mid-October through May, you're dealing with:
![Lamicall Bike Frame Bag Waterproof - [1s Release] [2 in 1] Bike Phone Mount Holder, Bicycle Top Tube Bag, Cycling Pouch with Rain Cover, Bikes Accessories Gifts for Phones Under 7"](https://ebikeroo.com/aimg/images/I/71VKkKd2xtL._AC_SX679_.jpg)
- Sustained humidity at 85–95% — moisture condenses inside the cell housing even when it isn't actively raining.
- Wind-driven rain at 25–40 mph — water gets forced upward into vents and seams that would never see moisture in vertical rain.
- Salt and magnesium chloride brine on bridges and arterials, especially I-5 corridor crossings in Seattle and Portland.
- Temperature swings from 28°F to 55°F in 12 hours — this is the killer. Warm humid air gets trapped, then condenses into liquid water inside the pack as temps drop overnight.
Most factory ebike batteries are rated IPX4 or IPX5. That's enough to handle a quick shower. It is not enough for a 14-mile commute from Ballard to Bellevue in November. The good news: a few cheap upgrades push your effective rating to IPX6+ without voiding any warranty.
The Four-Layer PNW Waterproofing System
Layer 1: Seal the Case-to-Frame Interface
On 90% of ebikes, water gets in at the seam where the battery slides into the downtube mount or the rear rack cradle. The factory rubber gasket dries out and cracks after one winter. Replace it with a strip of 3M 4411N extreme sealing tape (about $18 on Amazon) cut to fit the perimeter of the contact surface. It's UV-stable, conforms to irregular shapes, and peels cleanly when you need to service the pack.
For the keyhole or locking mechanism (where the key cylinder passes through the case), a small dab of marine-grade dielectric grease — CRC 02085 or Permatex 22058 — on the key barrel keeps moisture from wicking into the lock and freezing it shut. Reapply monthly through winter.
Layer 2: Protect the Discharge and Charging Ports
This is where most PNW riders lose batteries. The discharge port (where the pack mates to the bike's controller) and the charging port (the round barrel jack on the side of the pack) are both designed assuming the bike lives in a garage. Pack a small tube of dielectric grease and apply a pea-sized amount to both connectors at the start of the wet season. It displaces water, prevents galvanic corrosion between the brass and aluminum, and washes off cleanly with isopropyl alcohol when you replace it next October.
For the charging port specifically, every PNW battery should have a rubber port plug (most ship with one but riders lose them). If yours is missing, a $4 silicone earbud tip from a hardware store fits the standard 5.5mm barrel jack perfectly.
Layer 3: Add an External Cover
A neoprene battery sleeve (the kind sold for Bafang, Bosch, and Shimano packs) does three things at once: blocks wind-driven rain, insulates the pack so it stays above 40°F during your commute, and prevents road grit from scoring the case. Look for 3mm closed-cell neoprene with sealed seams — not the open-cell stuff sold as a phone case.

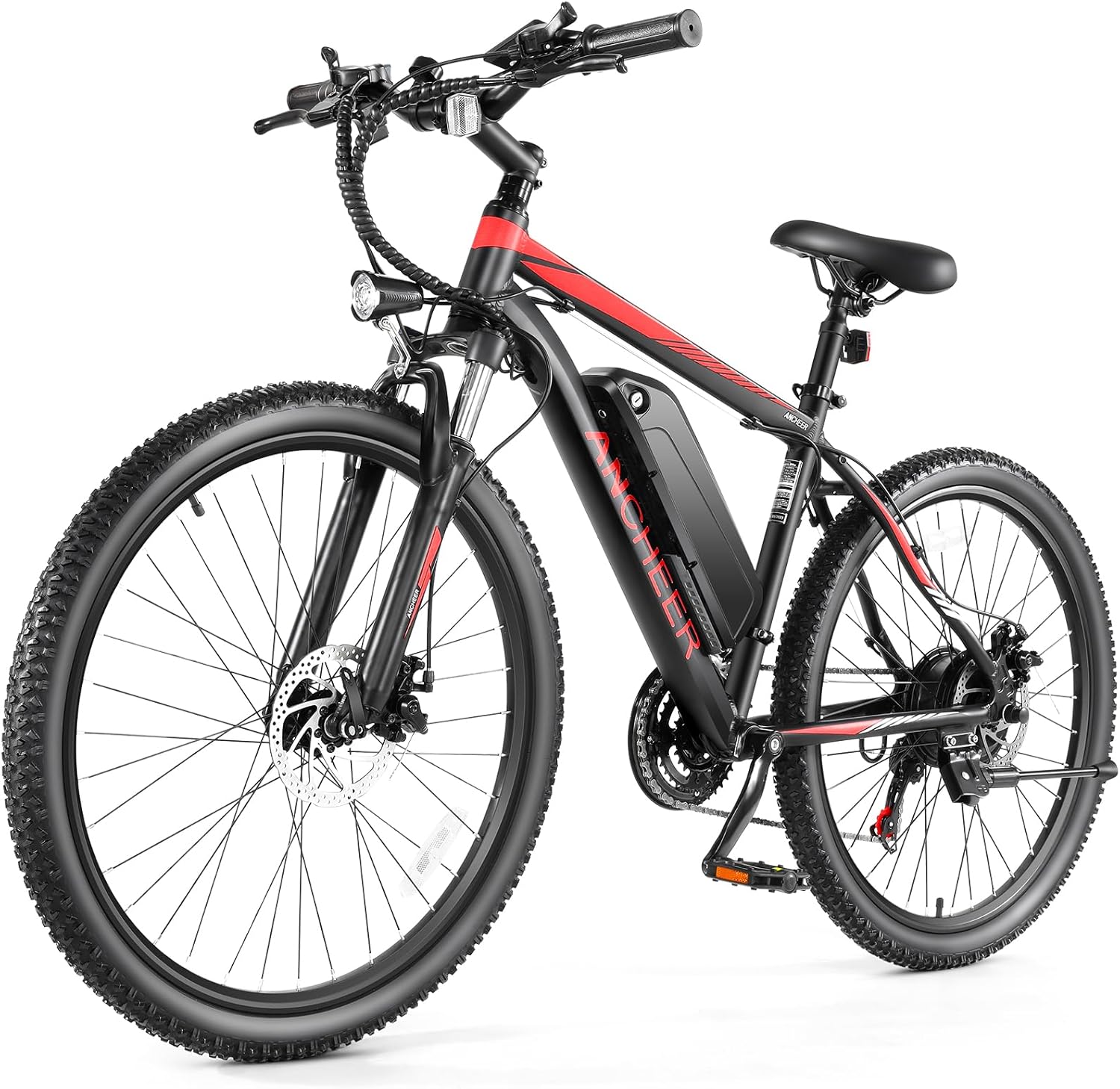

![ANCHEER Electric Bike for Adults, [Peak 750W Motor] Electric Mountain Bike, 26](https://ebikeroo.com/aimg/images/I/81ysutjM6zL._AC_SL1500_.jpg)
Layer 4: Storage Discipline
Every PNW battery owner needs to internalize this: never store a wet battery on the bike overnight in an unheated garage. Condensation will pull moisture into the pack as temps drop. Pull the battery, wipe it down with a microfiber towel, and bring it inside to a room that stays between 50–75°F. This single habit will add 2–3 years to your pack's calendar life.
![ANCHEER Electric Bike for Adults, [Peak 750W Motor] Electric Mountain Bike, 26](https://ebikeroo.com/aimg/images/I/71YQJ-mSp7L._AC_SL1500_.jpg)
Essential Gear for PNW Ebike Battery Protection
You don't need to spend a fortune to make this work. Here's what actually moves the needle for waterproofing, plus a few adjacent items that make winter ebike commuting livable in general.
| Product | What It Protects | PNW Winter Rating | Best For |
|---|---|---|---|
| Lamicall Waterproof Frame Bag (2-in-1) | Battery + electronics in frame triangle | IPX6 equivalent | Mid-drive bikes with downtube packs |
| Roam Universal Phone Holder + Waterproof Case | Phone, keys, charging cable | IPX7 case | Riders who carry the charger |
| Lamicall Bike/Motorcycle Phone Mount | Phone (GPS for routing around flooded streets) | Splash-rated | Fair-weather commuters |
| Airmoto Portable Tire Inflator | Tire pressure (low tires = wet road grip loss) | N/A (storage tool) | Daily commuters |
| Cordless Tire Inflator Pump | Tire pressure on the road | N/A (storage tool) | Long-distance riders |
Lamicall Waterproof Bike Frame Bag with Phone Mount
If your battery sits in the frame triangle (common on Aventon, Rad, and Lectric models), the single best upgrade you can make is a frame bag that covers the battery and gives you a waterproof phone mount in one piece. The Lamicall 2-in-1 uses a TPU-coated 600D outer shell with welded seams — not stitched — which is what makes it actually waterproof rather than "water resistant." The phone window doubles as a touchscreen interface so you don't have to pull your phone out in the rain to check Strava or skip a song. PNW commuters report 3+ winters of daily use without leak-through. Check current price on Amazon.
Roam Universal Bike Phone Holder + Waterproof Storage Case
If you carry your charger to work (which most PNW commuters do, since top-up charging at the office means your battery isn't sitting in a wet bike all day), you need a waterproof case on the bike for the charger brick, your keys, and a spare set of dielectric grease. The Roam case mounts to the handlebar stem or seatpost and is rated IPX7 — meaning it survives full submersion, not just rain. The integrated phone holder is a bonus for GPS routing around flooded greenways. See it on Amazon.
Airmoto Portable Tire Inflator
This isn't directly battery-related, but it matters for PNW riding: cold rain drops tire pressure 1–2 PSI per 10°F temperature swing, and underinflated tires cause the motor to draw 15–25% more current to maintain the same speed. That extra current means heat inside the battery, which combined with cold ambient temperatures creates the condensation cycle that kills packs. Keep your tires at spec all winter and your battery stays cooler and drier. The Airmoto is small enough to live in a pannier and runs off its own internal battery. View on Amazon.
Cordless Portable Air Compressor Pump
A larger, faster alternative to the Airmoto for riders with fat-tire ebikes (Rad Rover, Aventon Aventure, Lectric XPedition). Fat tires take forever to inflate with a small compressor — a cordless higher-flow unit cuts the time from 6 minutes to under 90 seconds. Check it out on Amazon.
Step-by-Step: Waterproofing Your Battery Before Winter
Block out 90 minutes one Saturday in early October. Here's the sequence:
- Remove the battery from the bike. Wipe down the entire case with isopropyl alcohol on a microfiber cloth.
- Inspect every seam for cracks, especially where the case meets the keyhole housing. Hairline cracks get sealed with a tiny dab of clear silicone (GE Silicone 2+).
- Apply dielectric grease to the discharge port pins, the charging port, and the keyhole. Use a toothpick to work it into the contacts.
- Inspect the bike's mating connector — the part bolted to the frame. Grease this too.
- Cut 3M 4411N tape to fit the perimeter of the battery-to-frame interface. Apply to the frame side, not the battery, so you can still service the pack easily.
- Reinstall the battery and verify the lock engages cleanly.
- Slide on the neoprene sleeve if you're using one.
- Test-ride for 5 minutes in the rain (or a hose if it's not raining yet). Pull the battery and check the underside for water ingress.
For more on cold-weather ebike prep, see our guide on cold-weather ebike tire pressure and best fenders for PNW ebike commuting.
What to Do If Water Already Got In
If your battery has gotten visibly wet inside (you can see condensation on the contacts, or the BMS is throwing a fault code), do not charge it. Plugging a charger into a wet pack is the most common cause of catastrophic thermal events in ebike batteries.
Instead: remove the battery, place it on a towel in a dry room (50–75°F), and direct a fan at it for 48–72 hours. Do not use heat — no hair dryers, no ovens, no radiators. After 72 hours, inspect the contacts. If they're dry and corrosion-free, attempt a slow charge (use a 2A charger if you have one, not the stock 4A) and monitor for heat. If anything feels warm to the touch beyond mild warmth, stop and have the BMS inspected by an ebike shop.
For severe water intrusion, the pack needs to come apart. This is a job for a shop unless you're comfortable with 18650/21700 cell handling. Local PNW options that do battery service: Electric Bikes Northwest (Seattle), Cynergy E-Bikes (Portland), and most Trek dealers.
Frequently Asked Questions
What IP rating do I need for an ebike battery in Seattle or Portland?
For year-round PNW commuting, target IPX6 or higher. Factory ratings of IPX4 or IPX5 are inadequate for sustained wet-season use. You can upgrade an IPX4 pack to effective IPX6 protection using the sealing tape, dielectric grease, and neoprene cover system described above. IPX7-rated packs (full submersion) are overkill unless you regularly ford streams or commute through flooded underpasses.
Can I leave my ebike battery on the bike overnight in a covered carport?
No, and this is the single most common mistake PNW ebike owners make. A covered carport blocks direct rain but does nothing about humidity and temperature swings. Pull the battery every night from October through May and store it inside between 50–75°F. This habit alone will add 2–3 years to your pack's usable life and prevents the slow condensation creep that kills BMS boards.
Does cold weather damage my ebike battery, or just the rain?
Both, but in different ways. Cold (below 32°F) temporarily reduces available capacity by 20–30% — this is reversible and the pack recovers when warmed. The permanent damage comes from charging a cold battery (never charge below 40°F internal temp) and from the condensation cycle of warm-humid-then-cold air inside the case. Keep the pack above 40°F during charging and seal it against humidity, and cold itself isn't a long-term problem.
How often should I reapply dielectric grease to the battery contacts?
Once per month during the wet season (October through May in the PNW), or after any ride where the bike was hosed down or rode through standing water. Wipe the old grease off with isopropyl alcohol on a cotton swab, inspect for corrosion (green or white powder on brass contacts), and reapply a thin layer. It takes 90 seconds and is the highest-ROI maintenance task on the entire bike.
Will waterproofing my battery void the manufacturer warranty?
External measures — sealing tape on the frame side of the interface, neoprene covers, dielectric grease on external contacts — do not void warranties from any major brand (Bosch, Bafang, Shimano, Aventon, Rad). What does void warranty is opening the battery case, modifying the BMS, or using a non-OEM charger. Stick to external protection and you're fine. Always check your specific manufacturer's terms before applying sealant directly to the case itself.
Can I use silicone spray instead of dielectric grease on the connectors?
No. Silicone spray displaces water but evaporates within days and provides zero long-term corrosion protection. It can also leave a residue that increases contact resistance over time, which causes voltage drop and heat under load. Use a proper dielectric grease rated for electrical connectors — CRC, Permatex, and 3M all make appropriate products for under $10.
What's the best way to charge my battery if my garage is unheated?
Bring the battery inside to charge. Charging in sub-40°F temperatures causes lithium plating on the anode, which permanently reduces capacity and increases the risk of internal shorts. If you must charge in a cold space, let the battery sit at room temperature for at least 2 hours before plugging in the charger. For more on charging cycles and longevity, see our ebike battery charging best practices guide.
How long should a properly waterproofed PNW ebike battery last?
With the four-layer protection system and disciplined storage, expect 800–1,200 full charge cycles before reaching 80% of original capacity — roughly 5–7 years of daily commuter use. Without these measures, PNW riders typically see 300–500 cycles before noticeable capacity loss, or 2–3 years. The protection system pays for itself in the first winter.
Key Takeaways
- Choosing the right how to waterproof ebike battery for pacific northwest winters means matching capacity and output ports to your actual devices
- Always check actual watt-hours (Wh), not just watts — runtime depends on Wh, not peak output
- Also covers: ebike battery rain protection seattle
- Also covers: waterproofing ebike battery wet climate
- Also covers: ebike battery cover for rainy winters
- Compare price-per-Wh across models to find the best value for your budget
